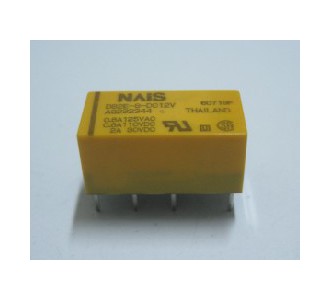

松下繼電器DS2E-S-DC12V原裝新貨.長期特價現貨供應,歡迎咨詢.

產品說明：全新原裝正品 ROSH認證（環保）

品   牌 ：松下

類     型 ： 信號繼電器
系     列 ： DS2E系列
型     號 ： DS2E-S-DC12V

外形尺寸（mm）： 20.0×9.9×9.8mm（L×W×H）
重     量 ： 4g

觸點參數：

觸點形式： 2C（DPDT）

觸點負載： 2A/30VDC,2A/250VAC
              阻     抗： ≤50mΩ
              額定電流： 2A

電氣壽命：≥10⁵
機械壽命：≥10⁸

線圈參數：
             阻值(士10%)：720Ω
             線圈功耗：200mW
             額定電壓：DC 12V
             吸合電壓：DC 8.4V
             釋放電壓：DC 1.2V
工作溫度：-40℃～+70℃
絕緣電阻：≥1000MΩ
線圈與觸點間耐壓：1500VAC/1分鐘
觸點與觸點間耐壓：1000VAC/1分鐘

具體系列型號：

DS

DS1E-M-DC1.5V、DS1E-M-DC3V、DS1E-M-DC5V、DS1E-M-DC6V、DS1E-M-DC9V、DS1E-M-DC12V、DS1E-M-DC24V、DS1E-M-DC48V、

DS1E-S-DC1.5V、DS1E-S-DC3V、DS1E-S-DC5V、DS1E-S-DC6V、DS1E-S-DC9V、DS1E-S-DC12V、DS1E-S-DC24V、DS1E-S-DC48V、

DS2E-M-DC1.5V、DS2E-M-DC3V、DS2E-M-DC5V、DS2E-M-DC6V、DS2E-M-DC9V、DS2E-M-DC12V、DS2E-M-DC24V、DS2E-M-DC48V、

DS2E-S-DC1.5V、DS2E-S-DC3V、DS2E-S-DC5V、DS2E-S-DC6V、DS2E-S-DC9V、DS2E-S-DC12V、DS2E-S-DC24V、DS2E-S-DC48V、

DS4E-M-DC1.5V、DS4E-M-DC3V、DS4E-M-DC5V、DS4E-M-DC6V、DS4E-M-DC9V、DS4E-M-DC12V、DS4E-M-DC24V、DS4E-M-DC48V、

DS4E-S-DC1.5V、DS4E-S-DC3V、DS4E-S-DC5V、DS4E-S-DC6V、DS4E-S-DC9V、DS4E-S-DC12V、DS4E-S-DC24V、DS4E-S-DC48V、

DS1E-ML-DC1.5V、DS1E-ML-DC3V、DS1E-ML-DC5V、DS1E-ML-DC6V、DS1E-ML-DC9V、DS1E-ML-DC12V、DS1E-ML-DC24V、DS1E-ML-DC48V、

DS1E-SL-DC1.5V、DS1E-SL-DC3V、DS1E-SL-DC5V、DS1E-SL-DC6V、DS1E-SL-DC9V、DS1E-SL-DC12V、DS1E-SL-DC24V、DS1E-SL-DC48V、

DS2E-ML-DC1.5V、DS2E-ML-DC3V、DS2E-ML-DC5V、DS2E-ML-DC6V、DS2E-ML-DC9V、DS2E-ML-DC12V、DS2E-ML-DC24V、DS2E-ML-DC48V、

DS2E-SL-DC1.5V、DS2E-SL-DC3V、DS2E-SL-DC5V、DS2E-SL-DC6V、DS2E-SL-DC9V、DS2E-SL-DC12V、DS2E-SL-DC24V、DS2E-SL-DC48V、

DS4E-ML-DC1.5V、DS4E-ML-DC3V、DS4E-ML-DC5V、DS4E-ML-DC6V、DS4E-ML-DC9V、DS4E-ML-DC12V、DS4E-ML-DC24V、DS4E-ML-DC48V、

DS4E-SL-DC1.5V、DS4E-SL-DC3V、DS4E-SL-DC5V、DS4E-SL-DC6V、DS4E-SL-DC9V、DS4E-SL-DC12V、DS4E-SL-DC24V、DS4E-SL-DC48V、

DS1E-ML2-DC1.5V、DS1E-ML2-DC3V、DS1E-ML2-DC5V、DS1E-ML2-DC6V、DS1E-ML2-DC9V、DS1E-ML2-DC12V、DS1E-ML2-DC24V、DS1E-ML2-DC48V、

DS1E-SL2-DC1.5V、DS1E-SL2-DC3V、DS1E-SL2-DC5V、DS1E-SL2-DC6V、DS1E-SL2-DC9V、DS1E-SL2-DC12V、DS1E-SL2-DC24V、DS1E-SL2-DC48V、

DS2E-ML2-DC1.5V、DS2E-ML2-DC3V、DS2E-ML2-DC5V、DS2E-ML2-DC6V、DS2E-ML2-DC9V、DS2E-ML2-DC12V、DS2E-ML2-DC24V、DS2E-ML2-DC48V、

DS2E-SL2-DC1.5V、DS2E-SL2-DC3V、DS2E-SL2-DC5V、DS2E-SL2-DC6V、DS2E-SL2-DC9V、DS2E-SL2-DC12V、DS2E-SL2-DC24V、DS2E-SL2-DC48V、

DS4E-ML2-DC1.5V、DS4E-ML2-DC3V、DS4E-ML2-DC5V、DS4E-ML2-DC6V、DS4E-ML2-DC9V、DS4E-ML2-DC12V、DS4E-ML2-DC24V、DS4E-ML2-DC48V、

DS4E-SL2-DC1.5V、DS4E-SL2-DC3V、DS4E-SL2-DC5V、DS4E-SL2-DC6V、DS4E-SL2-DC9V、DS4E-SL2-DC12V、DS4E-SL2-DC24V、DS4E-SL2-DC48V、
