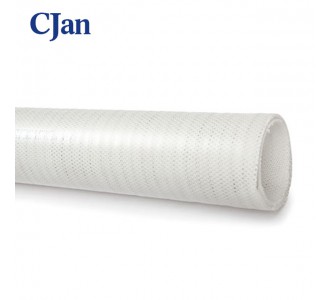

鉑金硫化鋼絲硅膠管 SQ
Construction: Type SQ is manufactured from High purity platinum cured Silicone with single stainless steel helix and 4 layers of polyester reinforcement.
Temp. Range: -60°C and 200°C. (+260°C on request)
Colour: Translucent (Coloured covers available)
Smooth inner and outer surface to resist material adhesion
Suitable for pressure and vacuum.
Suitable for CIP and SIP cleaning
Odourless, Tasteless, Non-Toxic
Certification: FDA, USP,BFR, USDA, ISO 10993
Length: Standard length is 4 or 6 meters.
** PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.
應用：食品、飲料、飲用水、化妝品、醫藥、制藥、中間體、半成品、原料藥等高潔凈行業
結構：鉑金硫化硅膠管，內置不銹鋼絲增強
溫度范圍：-60°C 到+200°C（+260°C可被定制）
顏色：標準為半透明，可定制其他顏色
內壁光滑，外表抗粘著性，可耐真空，可進行CIP及SIP清洗
符合認證：FDA, USP,BFR, USDA, ISO 10993
長度：標準長度為4米或6米
|
編碼 |
內徑 |
外徑 |
彎曲半徑 |
工作壓力 |
爆破壓力 |
真空度 |
|
|
in. |
mm |
mm |
mm |
bar |
bar |
bar |
|
|
SQ006 |
1/4" |
6.4 |
17.5 |
29 |
13 |
39 |
0.91 |
|
SQ008 |
5/16" |
7.9 |
19 |
31 |
12 |
36 |
0.91 |
|
SQ010 |
3/8" |
9.5 |
20.5 |
34 |
11 |
33 |
0.91 |
|
SQ013 |
1/2" |
12.7 |
24 |
39 |
10 |
30 |
0.91 |
|
SQ016 |
5/8" |
15.9 |
27 |
45 |
9 |
27 |
0.91 |
|
SQ019 |
3/4" |
19 |
30 |
54 |
8.5 |
25.5 |
0.91 |
|
SQ022 |
7/8" |
22 |
33 |
60 |
8 |
24 |
0.91 |
|
SQ025 |
1" |
25.4 |
36 |
68 |
7.5 |
22.5 |
0.91 |
|
SQ032 |
1-1/4" |
32 |
43 |
94 |
6.5 |
19.5 |
0.91 |
|
SQ038 |
1-1/2" |
38 |
49 |
112 |
5.5 |
16.5 |
0.91 |
|
SQ045 |
1-3/4" |
45 |
56 |
130 |
5 |
15 |
0.91 |
|
SQ051 |
2" |
50.8 |
62 |
144 |
4.5 |
13.5 |
0.91 |
|
SQ064 |
2-1/2" |
63.5 |
75 |
181 |
4 |
12 |
0.91 |
|
SQ076 |
3" |
76.2 |
88 |
232 |
3 |
9 |
0.91 |
|
SQ089 |
3-1/2" |
89 |
102 |
285 |
2.5 |
7.5 |
0.91 |
|
SQ102 |
4" |
102 |
114 |
367 |
2 |
6 |
0.91 |
?
